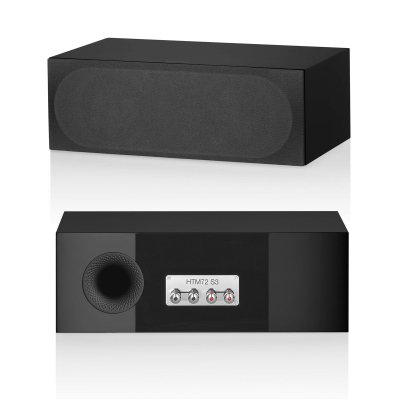

B&W HTM-72S3 Centre-channel speaker
HTM72 S3 is the more compact centre-channel speaker in the new 700 Series. It features a Carbon Dome tweeter and twin Continuum cone Mid/Bass drivers. Its the perfect partner for a home theatre system based around the 704 S3, 706 S3 or 707 S3.
*A premium choice for smaller set-ups
HTM72 S3 is the more compact centre-channel speaker in the range, bringing superior dialogue clarity to the home cinema experience.
*Sharper detail
Carbon Dome tweeters are purpose-built for the 700 Series. Delivering a dramatic improvement on the aluminium double dome tweeter, they raise the breakup threshold to 47kHz, for pinpoint imaging accuracy and detail.
*Truly amazing sound
Thanks to its composite construction, the Continuum cone avoids the abrupt transitions in behaviour that can impair the performance of a conventional drive unit. The result is a more open, neutral performance that delivers voices and instruments with precision and transparency.
สเปค
Size & weight
Dimensions
- Height: 165 mm (6.5 in) cabinet only
- Width: 477 mm (18.8 in) Cabinet only
- Depth: 266 mm (10.5 in) Cabinet only302 mm (11.9 in) including grille and terminals
Net weight 9.66kg (21.3 lb)
Technical details
- Technical features
- Decoupled Carbon Dome tweeter
- Continuum cone bass / midrange
- Flowport
Description 2-way vented-box system
Drive units
- 1x ø25mm (1 in) Decoupled Carbon Dome high-frequency
- 2x ø130mm (5 in) Continuum cone bass / midrange
Frequency range 48Hz and 33kHz
Frequency response 70Hz 28kHz ±3dB
Sensitivity 87dB spl (2.83Vrms, 1m)
Harmonic distortion
- 2nd and 3rd harmonics (90dB, 1m on axis)
- <1% 100Hz 22kHz
- <0.5% 200Hz 22kHz
Nominal impedance 8Ω (minimum 4.3Ω)
Recommended amplifier power 30W 120W into 8Ω on unclipped programme
Max recommended cable impedance 0.1
