Wiim AMP PRO
Multiroom Stereo Streaming Amplifier
Introducing WiiM Amp Pro
The WiiM Amp Pro is our second-generation streaming amplifier, distinguished by its exceptional product design, audio quality, wireless and audio connectivity, performance, and functionality. It delivers 60W per channel power for 8 ohms, and 120W per channel power for 4 ohms. Supporting all major streaming services and protocols, along with Dolby Digital Audio, it incorporates the latest Wi-Fi 6E and BT 5.3 including LE Audio with two antennas, offering rock solid wireless audio streaming.
Elevating Your Audio Experience
Moreover, by employing premium components such as the ESS ES9038Q2M Audio DAC, TI TPA3255 Amplifier, and OP AMP components and sophisticated circuit design, it achieves an SNR of 118 dB (A-weighted) and THD+N of-101dB at 5W across a frequency range of 44.1k to 192k, setting a high standard for audio fidelity. Functioning as an all-in-one device, it seamlessly integrates the streamer and speaker amplifier into one unit, compatible with your existing passive speakers such as bookshelf, ceiling, and floor-standing speakers.
Seamless Connectivity, Boundless Versatility

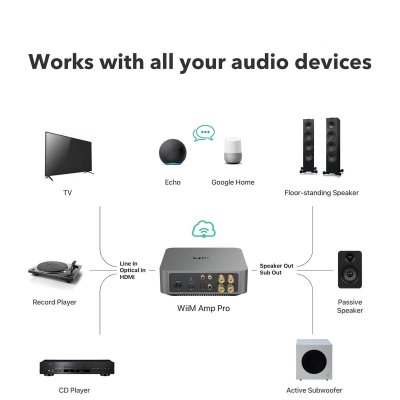

Furthermore, it can be connected to various audio devices including turntables, MP3 players, TVs, or projectors, enriching the audio quality and listening experience across these devices. Once the WiiM Amp Pro is connected to your cherished classic passive speakers, your immersive cinematic TV setup, or even your vintage record player, a world of musical possibilities unfolds before you. Effortlessly stream your treasured music collection directly from your preferred music application, whether its through the intuitive WiiM Home App or via hands-free voice commands using Alexa or Google Assistant, all while revelling in the utmost sound fidelity available.
Tech Specs :
*Power Output
60 Watts per channel at 8 ohms, or 120 Watts per channel at 4 ohms
*Speaker Configuration
Ability to Power up to four speakers w/post-filter feedback (PFFB) loop.
*DAC and Amplifier
32-bit/384kHz ES9038 Q2M SABRE DAC and TI TPA3255 Class-D amplifier
*Multiroom Streaming
Connect with Amazon Echo, Google Home, and other WiiM devices to create Multiroom Audio
*Supported Technologies
Supports Chromecast, Spotify, TIDAL Connect, Alexa Cast, DLNA
*Case
Elegant aluminium case with award-winning design
*Connection
HDMI ARC for connecting to TV with Dolby Digital support.

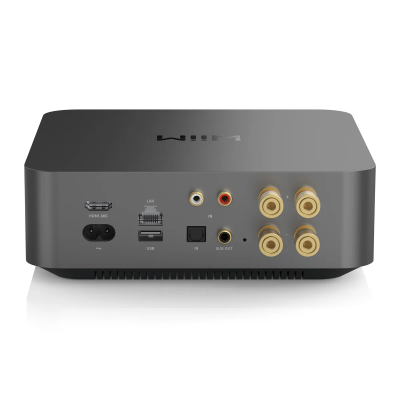

*Audio Inputs
Stereo RCA, Optical, HDMI ARC, USB-A
*Audio Outputs
HP terminals, Subwoofer out
*Connectivity
Latest Wi-Fi 6E and BT 5.3 with two antennas
*Playback
Gapless playback of Hi-Res music up to 24-bit/192 kHz
*Room Correction
Built-in room correction
*Sound Quality
Superior sound quality with -105 dB THD+N, 120 dB SNR
*USB Port
USB Port for Storage and Audio Out
*Voice Assistants
Works with Alexa, Works with Google
*Bluetooth
2-Way Bluetooth 5.3 to stream from your smartphone or connect and listen to your wireless headphones
*Dimensions and Weight8.54 x 7.48 x 2.6" (217 mm x 190mm x 66 mm), 4.59 lbs (2.08 kg)
What's in the box :
-WiiM Amp Pro
-WiiM Voice Remote
-100~240V AC Power Cable
-HDMI Cable
-Optical Audio Cable
