Magnifi Max AX

Elevate Your TV Sound
Experience the heart-pounding, cinematic thrills of immersive sound that envelops you from every angle. MagniFi Max AX combines an Atmos-enabled speaker array with up-firing drivers for overhead action and Polk SDA technology for a more expansive soundstage.

Dolby Atmos, done better


Complete Wireless Home Audio Entertainment

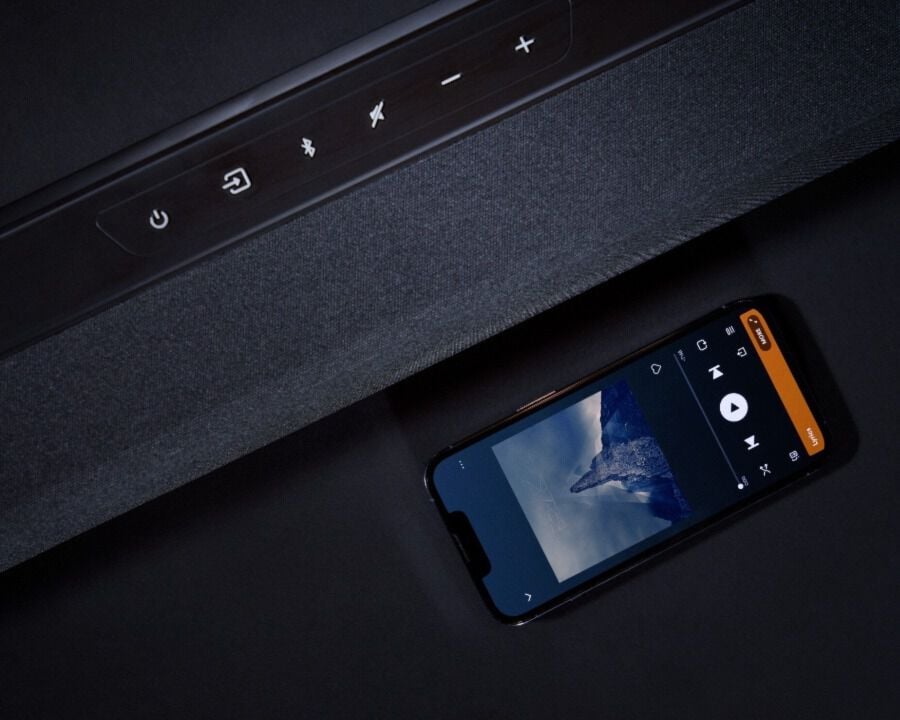

Enjoy high-quality Wi-Fi music streaming from your phone, tablet, or computer with Apple AirPlay 2, Google Chromecast, Spotify Connect, or any Works with Alexa- compatible music service. Connects via Bluetooth, too. Also, with these services, multiple MagniFi AX Series sound bars can be used for multi-room music listening.

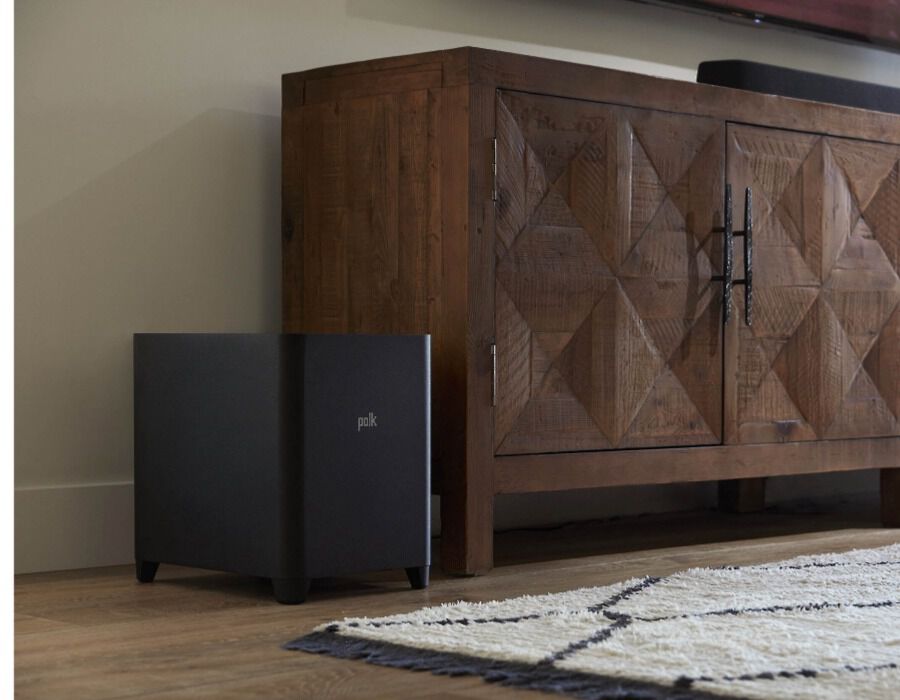

Maximum Bass with a Powerful 10 Wireless Subwoofer
The 10 down-firing MagniFi Max AX subwooferour most powerful sound bar subdelivers the deep, effortless bass that Polk is famous for. Wireless connection allows for convenient placement. Dial in the ultimate sound with BassAdjust.

Hear Every Word
Tired of riding the volume control? Never miss a word of dialogue again. Polks patented VoiceAdjust speech-clarifying technology works with MagniFis integrated center-channel speaker to bring up the volume of voices over other elements of the soundtrack.

TAKE IT EVEN FURTHER

Add surround sound to your MagniFi soundbar setup
Add SR2 Wireless Surrounds to select MagniFi sound bars with a super-simple setup. Wall mountable or simply place them on a shelf. No AV receiver required.

OVERALL
Total Pieces2
RemoteDeluxe Remote
Remote TypeInfrared (IR)
Included Accessories(1) High-speed HDMI cable
(1) Deluxe Remote
(2) AAA Batteries
(2) Sound Bar wall mounting brackets (screws and fasteners not included)
(1) Sound bar wall mount template
(1) Sound bar power cord
(1) Subwoofer power cord
(1) Quick Start Guide
(1) Registration card
Original Purchaser OnlyYes
Electronics Warranty1 years
Drivers Warranty3 years
Carton 1 (H x W x D)22.4 x 48 x 14.1 in
56.9 x 121.8 x 35.8 cm

SOUND BAR
Qty Included1
Height4.6 in (118 mm)
Width45 in (1143 mm)
Depth2.8 in (72 mm)
Weight12.85 lb (5.83 kg)
Driver Complement
Left/Right Channels(4) 1 x 3 in (25 x 76 mm) racetrack mid-woofer drivers
(2) 0.75 in (19 mm) soft dome tweeters
Center Channel(2) 1 x 2.5 in (25 x 64 mm) racetrack mid-woofer drivers
(1) 0.75 in (19 mm) soft dome tweeter
Left/Right Height Channels(2) 2.5 in (64 mm) full-range drivers
BluetoothBluetooth 5.0
WirelessYes
Wireless ProtocolWi-Fi (802.11 a/n/ac 2.4 GHz & 5 GHz)
Wi-Fi Streaming PlatformsApple AirPlay 2
Google Chromecast for Audio
Spotify Connect
Works with Alexa
Inputs/Outputs(3) HDMI 4K (60Hz)
(1) HDMI eARC 4K (60Hz)
Toslink Optical
USB (for firmware updates)
Video Pass-through4K HDMI
HDR
Dolby Vision
EthernetNo
Mounting TypeFlush-Mount Wall Bracket
Available OrientationsHorizontal

Wireless Subwoofer
Qty Included1
Height16 in (407 mm)
Width11.9 in (302 mm)
Depth15.7 in (399 mm)
Weight26.3 lb (11.9 kg)
Subwoofer Array Driver Enclosure TypeDownfiring, Ported
Subwoofer Array Driver Complement(1) 10 in (25.4 cm) Round Woofer

SUPPORTED AUDIO FORMATS
PCM
Dolby Mono
Dolby Digital
Dolby Digital Plus
Dolby Atmos
Dolby Atmos True HD
DTS Digital Surround
DTS-HD
DTS-HD Master Audio
DTS:X
DTS Virtual X
